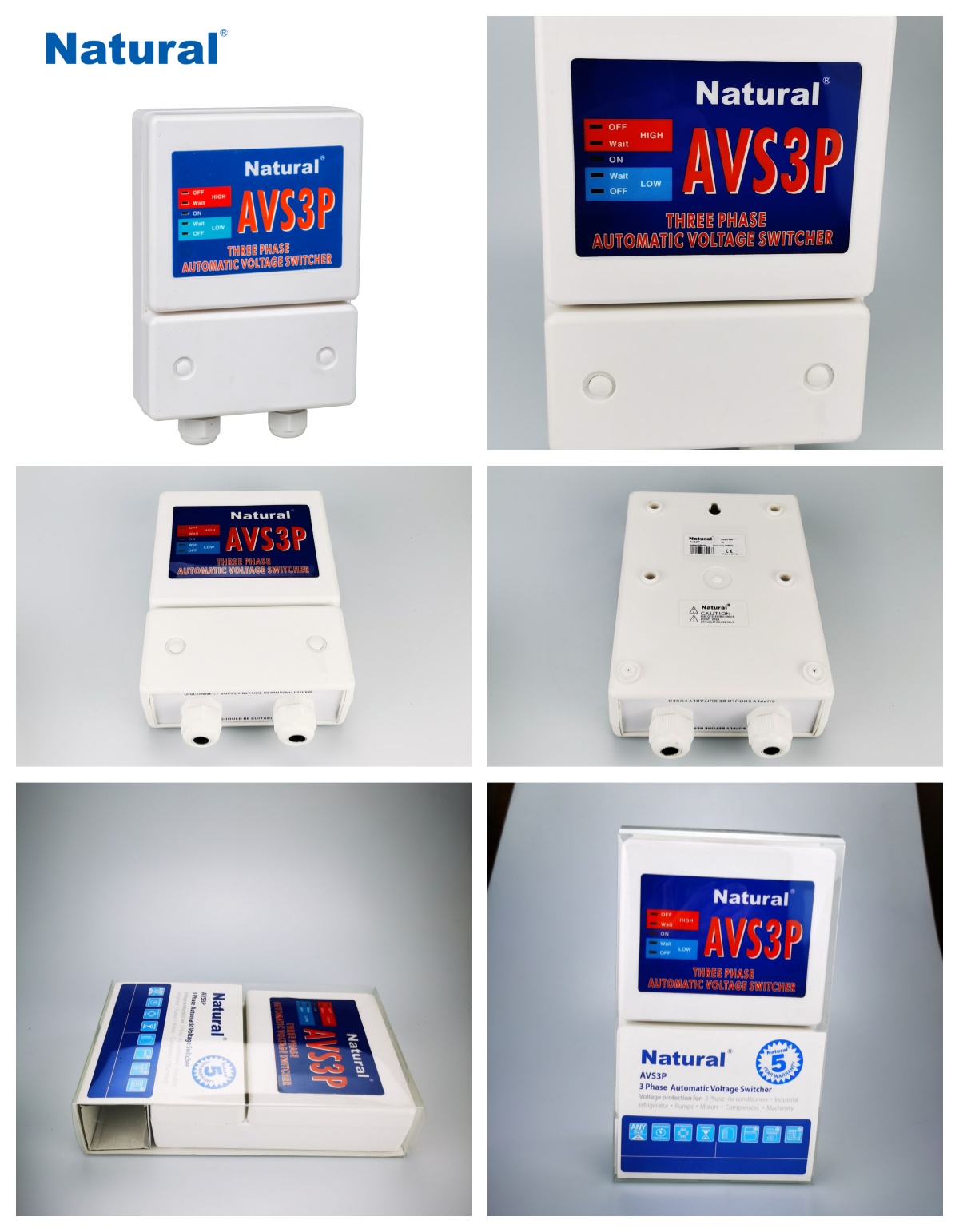

Auto Voltage Protector 3P
Current
16A@230V
Nominal
230/240V
Wait Time
10 Seconds to 10 Minutes (Factory Set: 4 Minutes)
Window Limits
Adjustable
Hysteresis
4V
Socket Type
Direct via brass screw terminal
Fused Plug
N/A
RFI Protection
No
Attenuation (db)
No
Spike Protection
160J @ 230V
Max Consumption
35VA
Max Supply (phase to neutral)
320V

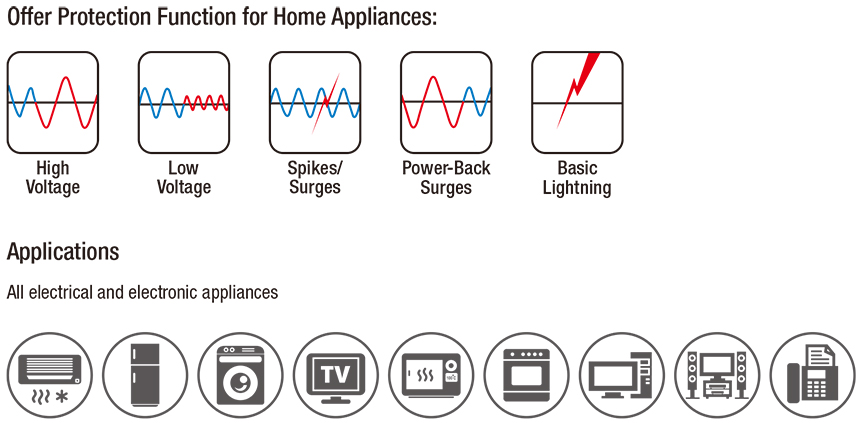

The AVP3P is an Automatic Voltage Protector designed to protect three phase loads from voltage fluctuations, over voltage, under voltage, surges, dips and frequent start/stops. The output is a single volt-free changeover contact, rated at 16A. This is intended to control an external contactor, control circuit, start/stop system or alarm. If the voltage on any one phase goes above or below the pre-set limits (the 'window'), then the AVP3P will switch off. Once the voltage returns within the window limits, the AVP3P will wait for a pre-set time, continuing to check the voltages, before automatically turning the load back on. The over voltage, under voltage and delay settings are all adj u stable using controls in the terminal compartment of the AVP3P. The standard window that is considered acceptable is 185V-260V (320V-450V three phase). Outside these limits electronic and electrical equipment are likely to be damaged.
