Product Name:AVP30 Auto Voltage Protector(LCD)

Product Model:




  • Parameters
  • Features
  • Structure Chart
  • Package
  • Application
  • Video
  • FAQ

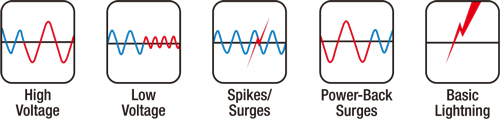

The AVP is an Automatic Voltage Protector rated at 30Amps. The AVP will switch off the equipment connected to it if the mains power goes outside preset acceptable limits and will re-connect automatically - when the mains power returns to normal. Re-connection takes place after a delay('the start-up delay') to ensure stability of the mains.

In addition, the start-up delay provides protection against power-back surges commonly experoenced after resumption of power in a power cut situation.

Surge and spile protection is also incorporated to ensure protection against these commonly occurring events.

Model AVP30-LCD
Nominal Voltage230V
Current Rating30A
Over-Voltage Disconnect260V
Over-Voltage Reconnect258V
Under-Voltage DIsconnect180V
Under-Voltage Reconnect185V
Mains Spike Response Time10ns
Mains Spike Discharge Amps6.5kA
Spike Protection160J
Wait Time10Seconds to 10Minutes
MaterialPC Fireproof UL 94 V-0
ApplicationsAll electrical and electronic appliances
Offer Protection Function for Home AppliancesAVP30-LCD.jpg
